What is Elevator & Escalator

What is Elevator

Elevators are mechanical lifts that provide vertical transportation for people and goods within a building. They operate through the use of an electric motor, which drives a system of traction cables and counterweights. When the motor runs, it pulls the elevator up, and when it stops, gravity takes hold, and the elevator goes down.

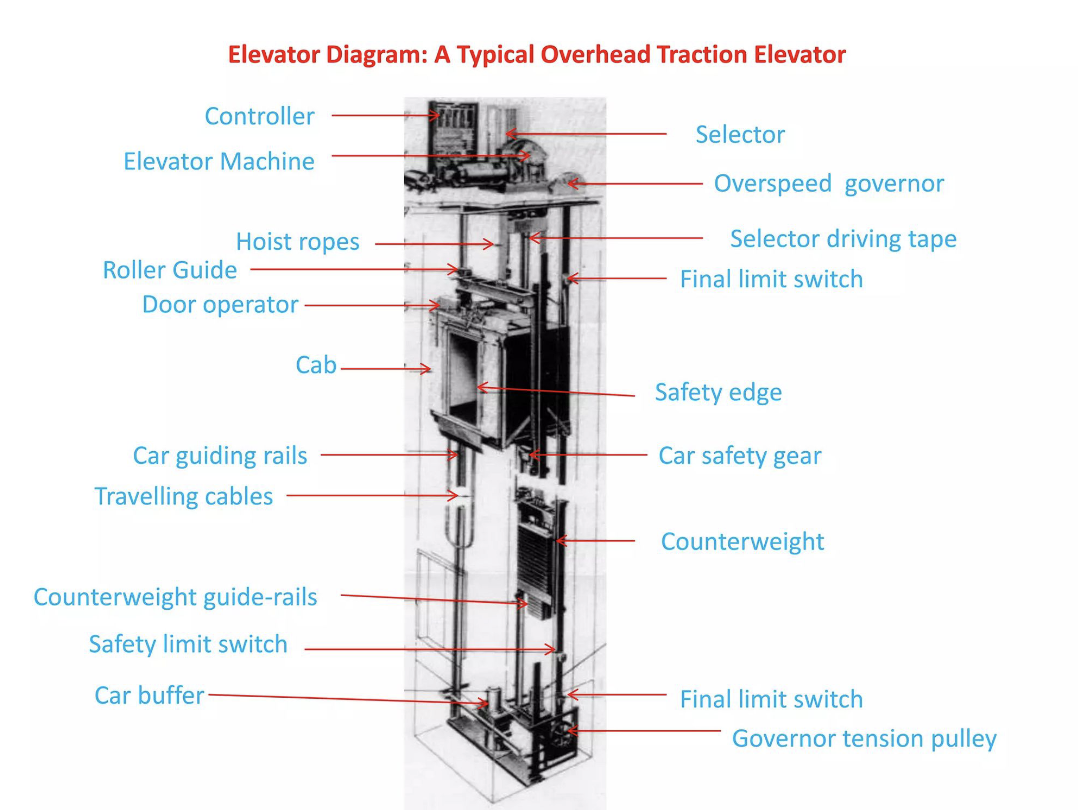

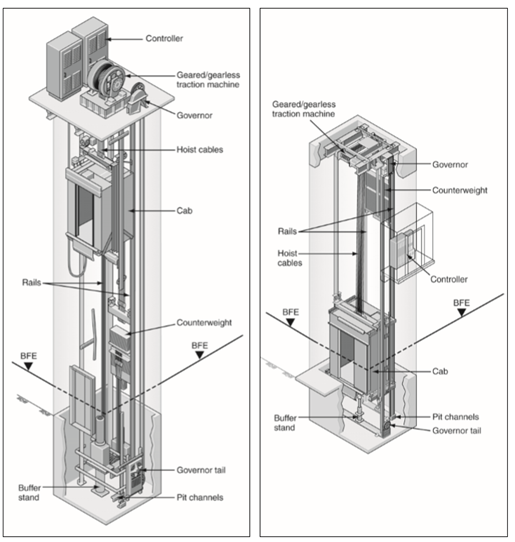

Elevator Diagram

What is Escalator

An escalator is a moving staircase which carries people between floors of a building or structure. It consists of a motor-driven chain of individually linked steps on a track which cycle on a pair of tracks which keep the step tread horizontal.

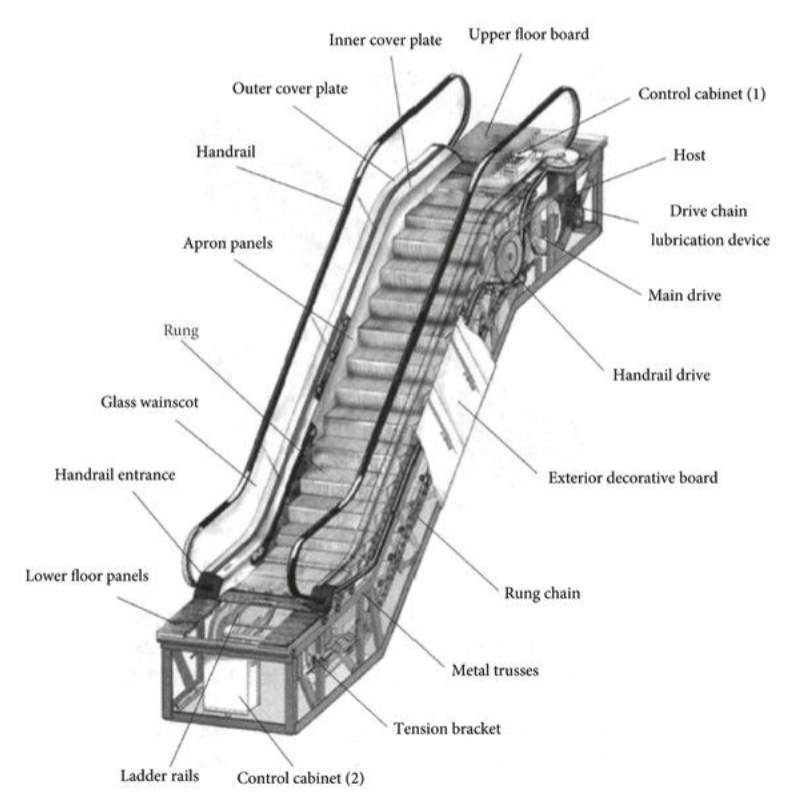

Escalator Diagram
Team bg

System of Elevator

Elevator traction system

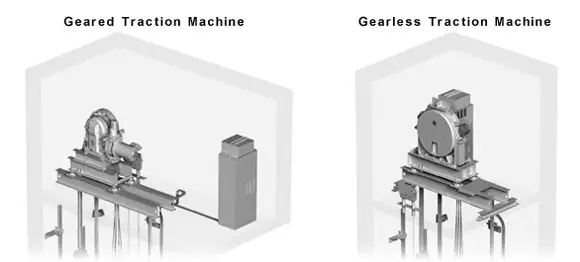

It serves the purpose of generating and transmitting power to facilitate the elevator’s movement. This system primarily com - prises the traction machine, traction rope, guide sheave, and counter rope sheave. The traction machine is responsible for sup - plying the necessary power to propel the elevator. It consists of components like an electric motor, traction sheave, shaft cou - pling, reduction box, and electromagnetic brake.

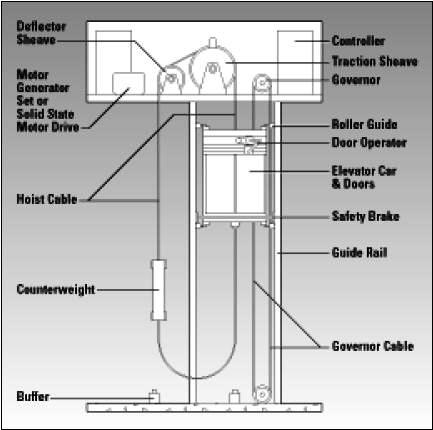

Elevator traction

Elevator Guide System

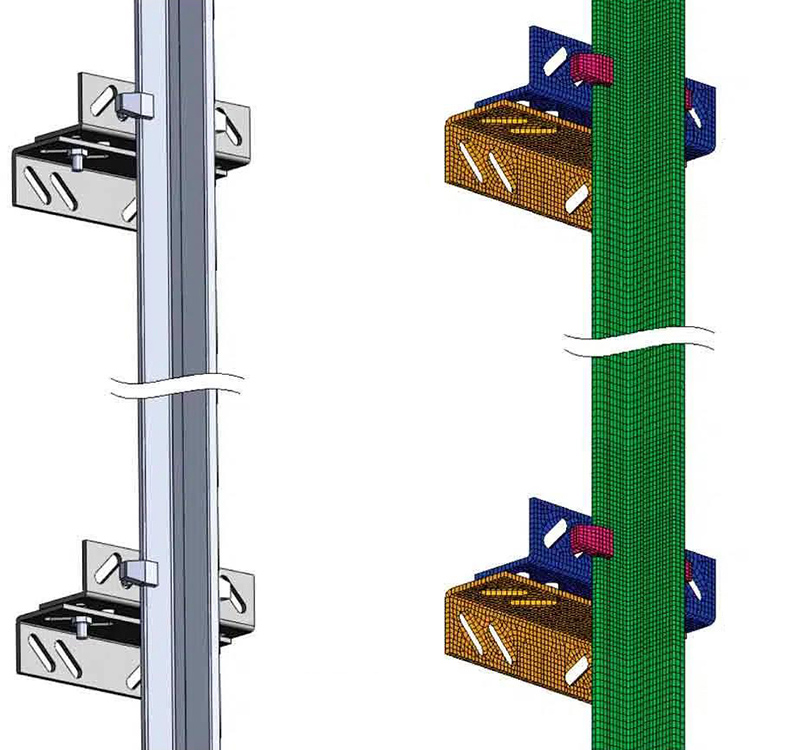

The guide system comprises guide rails, guide shoes, and guide frames. Its essential role is to constrain the range of motion for both the elevator car and the counterweight. This restriction ensures that these components are capable of solely moving vertically along the guide rail.

Elevator traction

Elevator Door System

The elevator door system encompasses components such as the car door, floor door, door opener, door locking device, linkage mechanism, and more. The car door is positioned at the car’s entrance, comprising the door itself and the door guide frame. Simi - larly, the floor door is situated at the entrance of each floor station. The door opener, located within the car, serves as the power source for both the car and the floor doors.

Elevator Door System

Elevator Car

The elevator car serves as a vital component designed to convey passengers or cargo. It is comprised of two main parts: the car frame and the car body. The car frame acts as the load-bearing structure for the car body, consisting of cross beams, columns, bot - tom beams, and diagonal rods. The car body itself encompasses the car’s bottom, walls, and ceiling, as well as features like light - ing, ventilation systems, decorative elements, and control button panels.

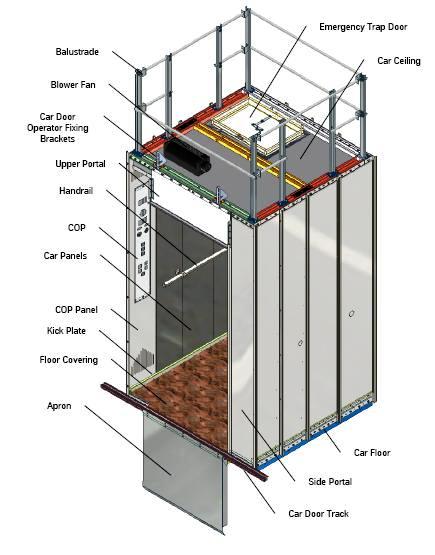

 Elevator Car

Elevator Counterweight System

The elevator counterweight system comprises the counterweight and the weight compensation device. Its primary role is to achieve a relative equilibrium in the weight distribution of the elevator components. By maintaining a controlled weight differential between the elevator car and the counterweight during operation, this system ensures that the elevator’s traction mechanism functions smoothly and as intended.

Elevator Counterweight System

Elevator Electric Drive System

The electric drive system encompasses components such as the traction motor, power supply system, speed feedback device, speed regulator, and more. Its primary role is to govern and regulate the elevator’s speed. The traction motor serves as the core power generator for the elevator, and depending on the elevator’s configuration, either an AC motor or a DC motor can be em - ployed.

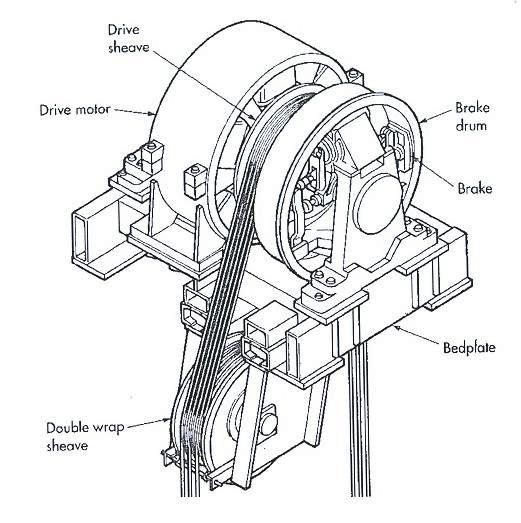

 Elevator Electric Drive System

Elevator Control System

The electrical control system of an elevator comprises components such as a control device, a manipulator, a leveling device, and a position display device. Its primary purpose is to manage and oversee the elevator’s operation.

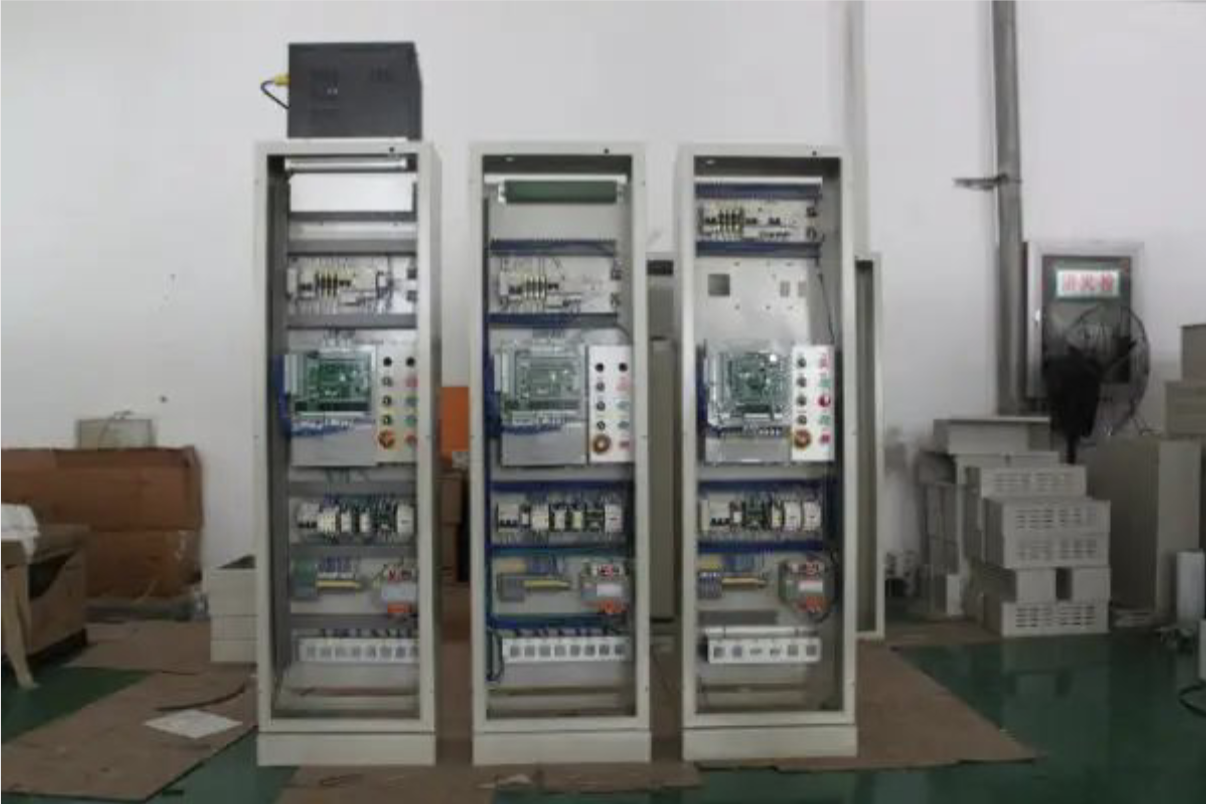

Elevator Control System

Elevator Safety System

The safety protection system encompasses a variety of both mechanical and electrical safeguards. Its core purpose is to guarantee the secure operation of the elevator and to avert any accidents that might pose a threat to personal safety. This system includes crucial components such as the elevator speed limiter, safety clamp, rope clamp, buffer, safety contact plate, floor door lock, eleva - tor safety window, elevator overload limiting device, and limit switch device.

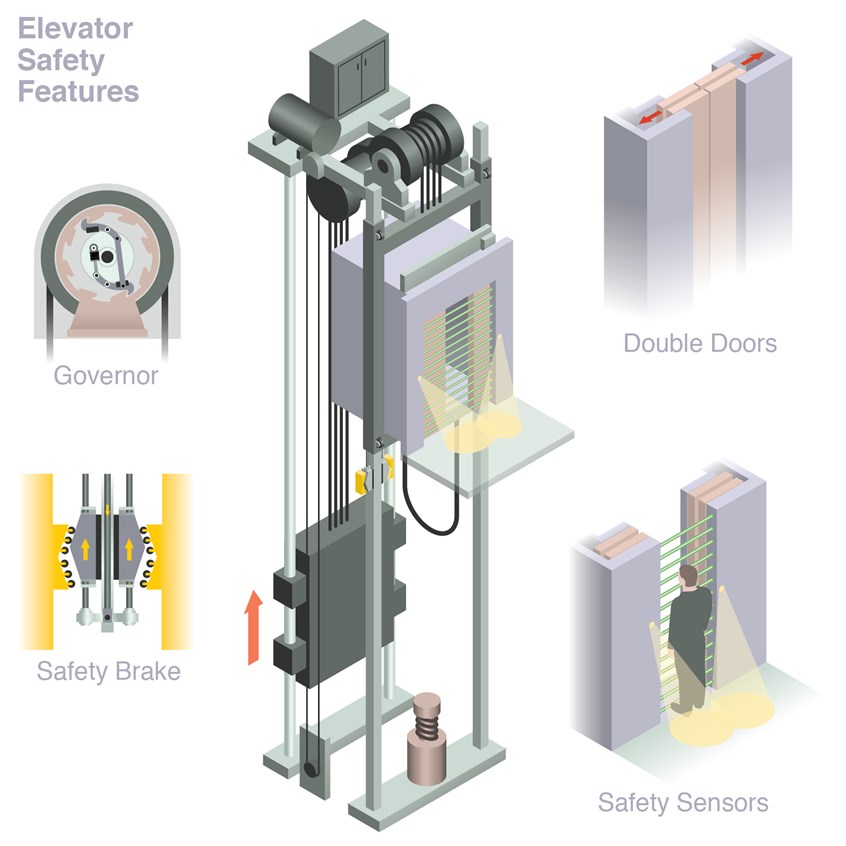

Elevator Safety SystemElevator Safety System
Team bg

Types of Elevator

Passenger Elevator

Passenger elevators are the kind you find in office buildings, hotels, and other public places. There is a type of elevator that carries people between floors. It is the most common type of lift in the world, and also known as residential elevators, departmental lifts, or simply as lifts or, more colloquially, as elevators.

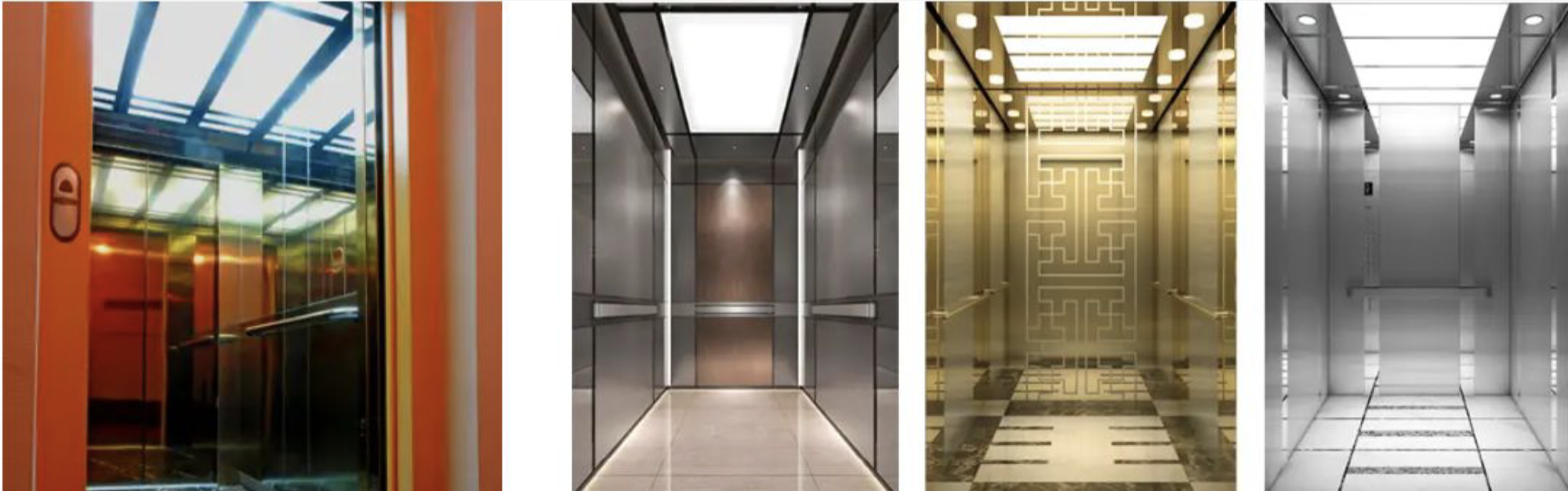

Passenger Elevator

Cargo elevator

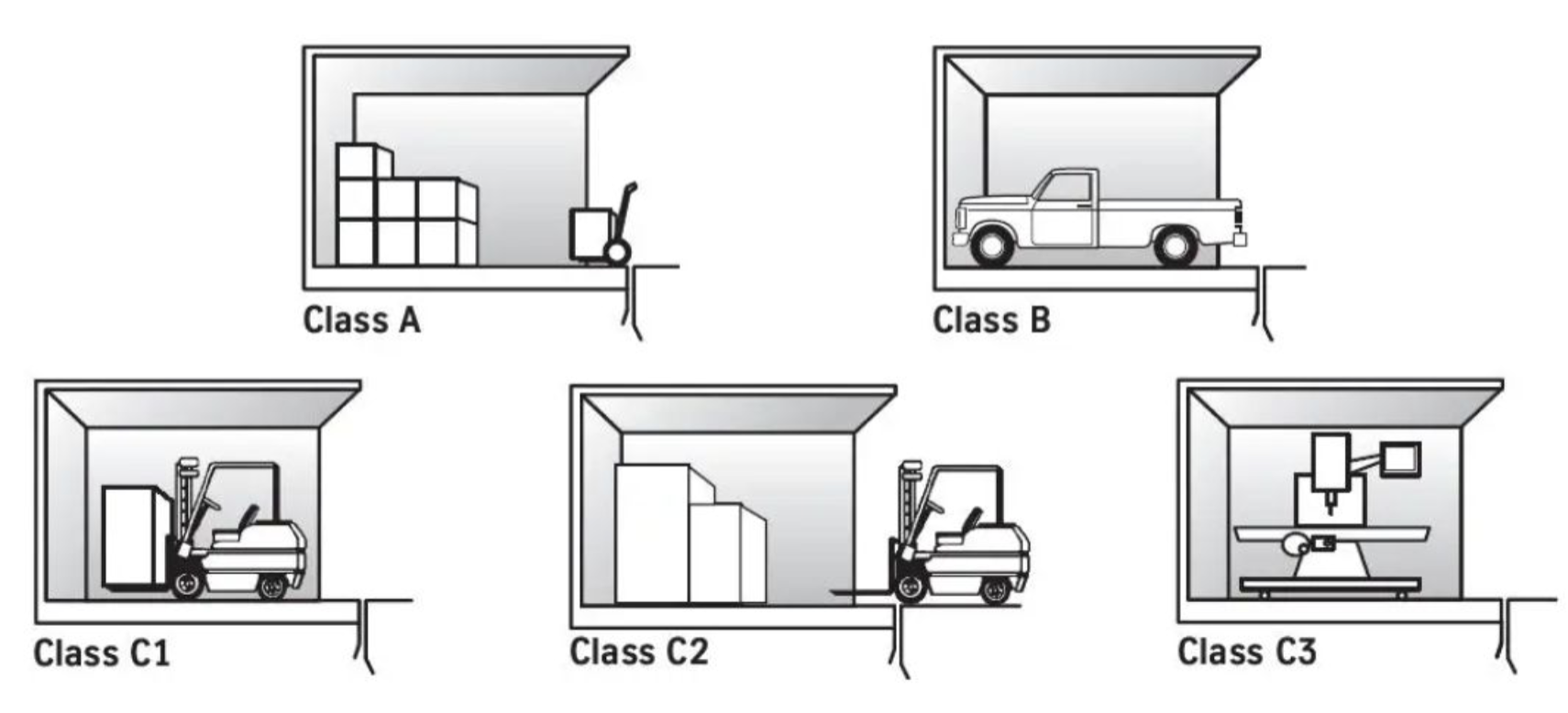

A cargo elevator is a specialized elevator that can carry heavy loads and large items. The design of the freight elevator can accom - modate oversized loads, such as furniture or construction materials. This type of elevator is commonly used in warehouses and in - dustrial facilities. Cargo elevators are also known as platform lifts or platform trucks.

Cargo Elevator

Hospital elevator

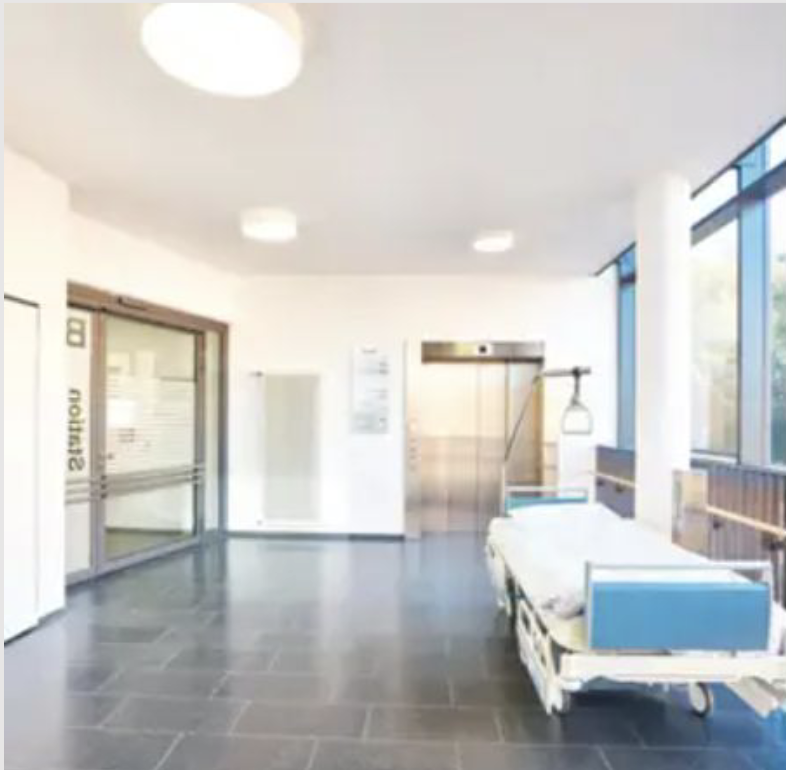

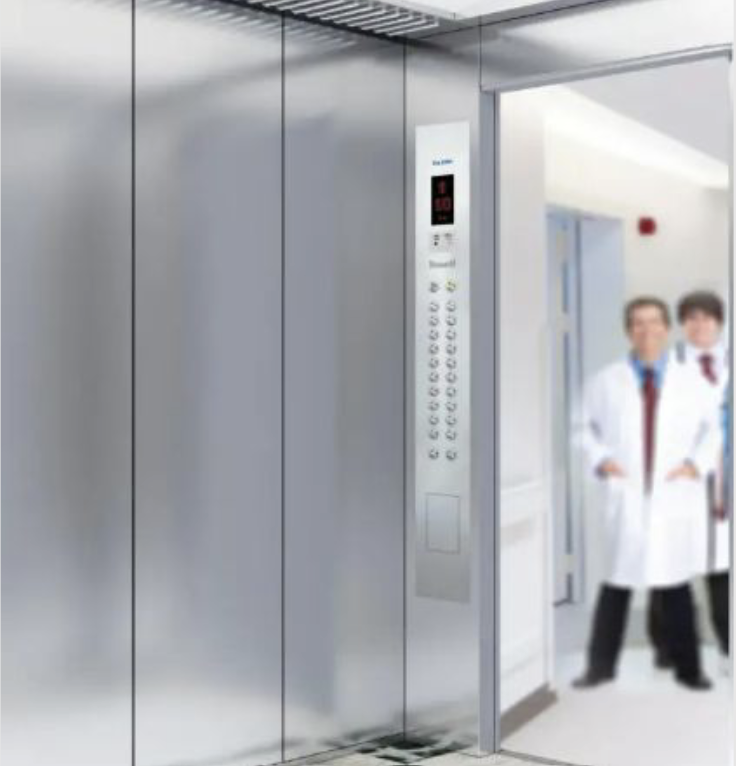

A hospital elevator is a type of elevator that is used in hospitals. It is also a vertical transport device, bed elevator, or lift. The design of hospital elevators varies depending on their purpose and use. For instance, a hospital elevator may be used to trans - port patients from their rooms to the operating room. In other cases, it may transport patients between building floors.

Hospital Elevator

Vehicle Elevator

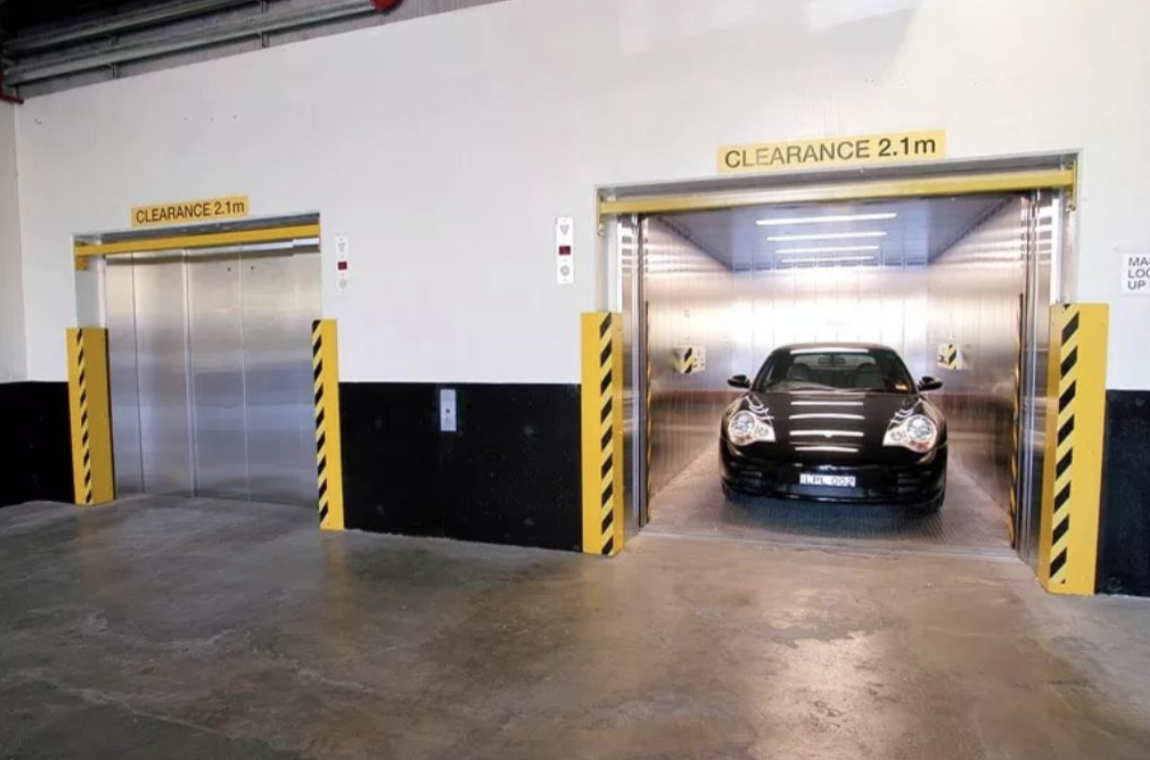

A vehicle elevator is a device that moves vehicles vertically and horizontally. A vehicle elevator can be a separate structure or an in - tegral part of the building—the most common elevator transports cars and other vehicles between floors in parking garages. Vehicle elevators are also used in warehouses, factories, and other commercial facilities to move vehicles between different levels.

Vehicle Elevator

Sightseeing Elevator

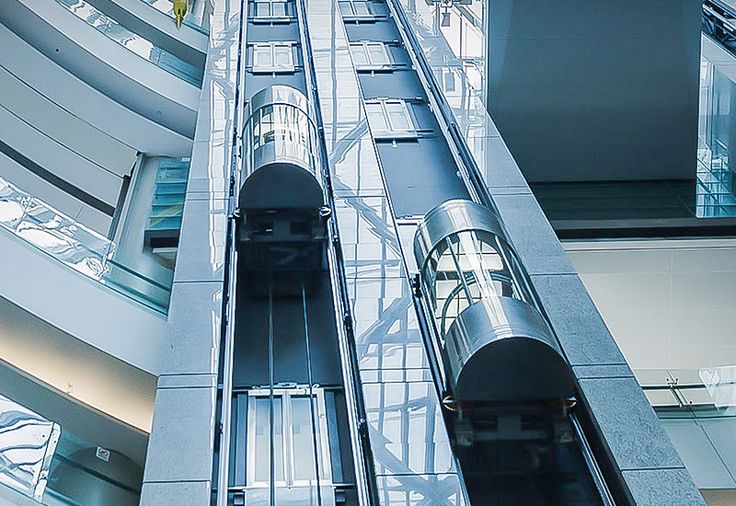

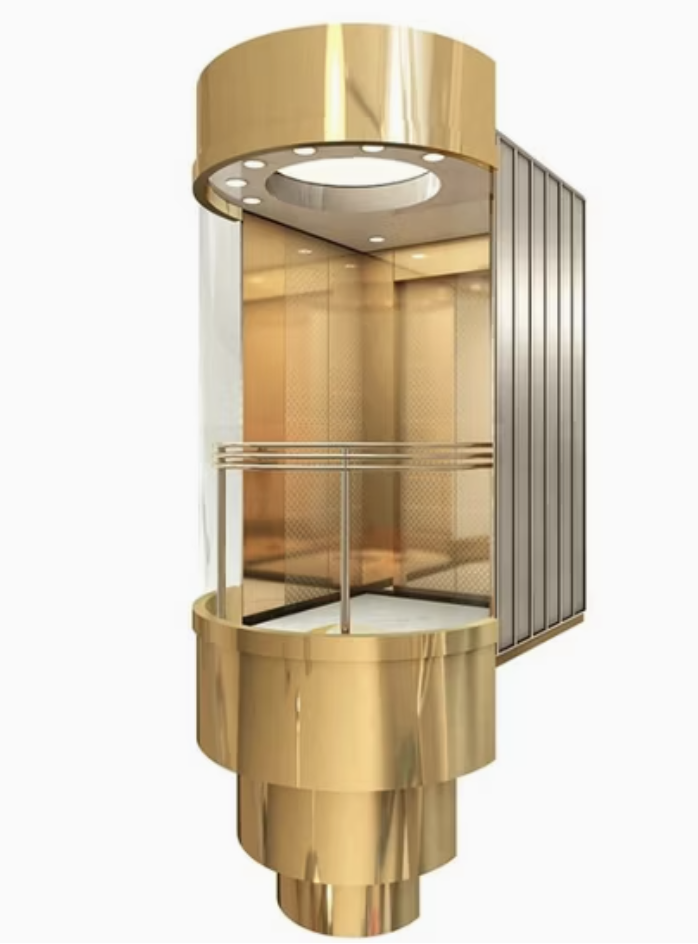

Sightseeing elevators carry tourists to the top of a building to view the city. They generally open up at the top of a building and offer tourists the opportunity to view their surroundings from above. Sightseeing elevators are similar in structure to standard elevators, but they have been modified to accommodate more people and provide a more comfortable trip up and down.

Sightseeing Elevator

Home Elevator

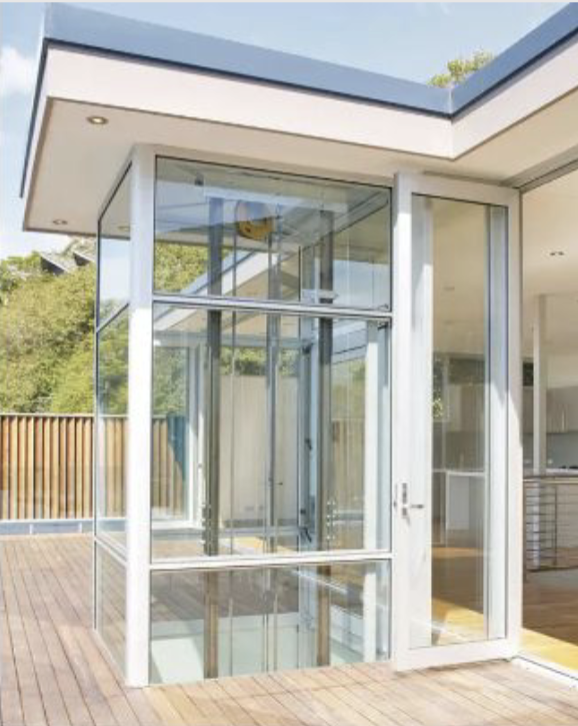

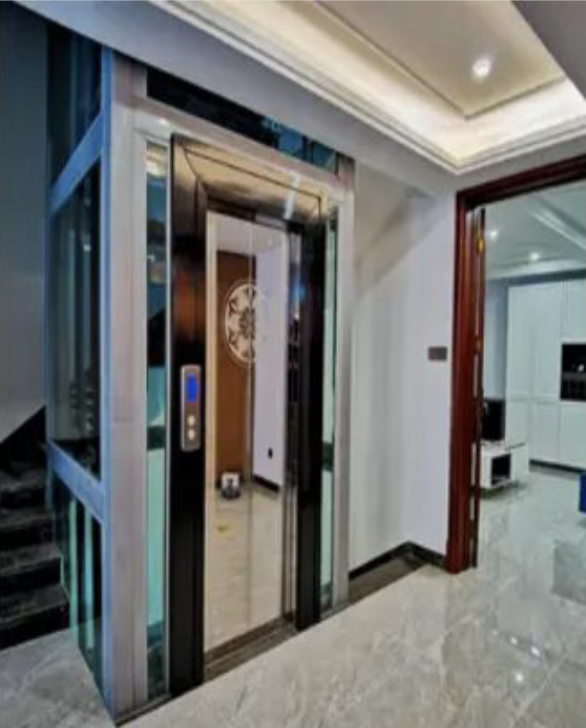

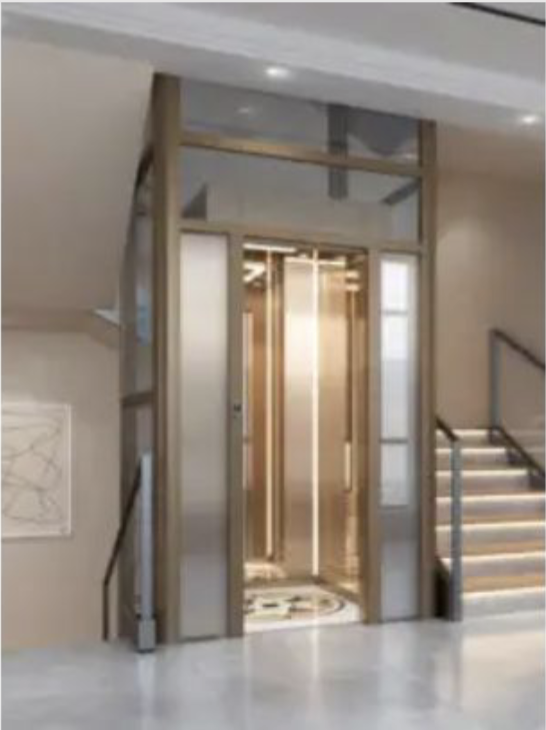

A home elevator is a small, portable elevator that can be installed in any residential building. Home elevators are typically used to access floors within a building that are too high for stairs, such as penthouse apartments or basements.

Home Elevator

Ship Elevator

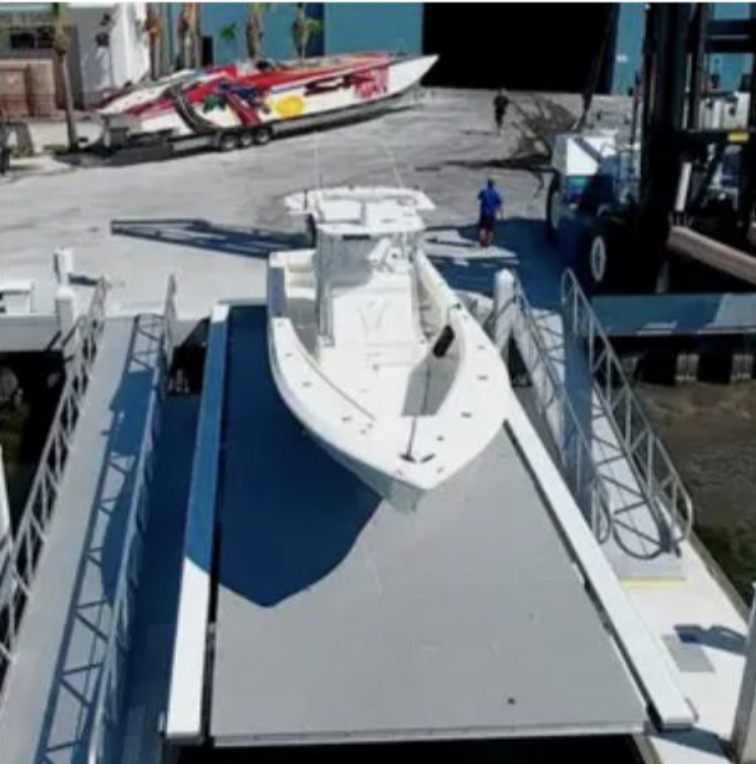

A ship elevator is a type of marine cargo elevator used to transport cargo from a ship’s deck to the ship’s bottommost deck. A ship elevator is usually a large, horizontal steel tray that sits over the side of a ship and can be raised or lowered using ropes and pulleys.

Ship Elevator

Construction elevator

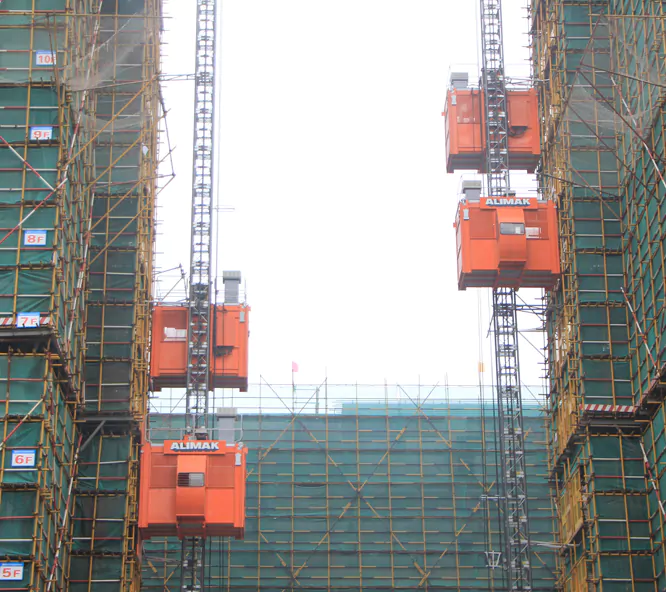

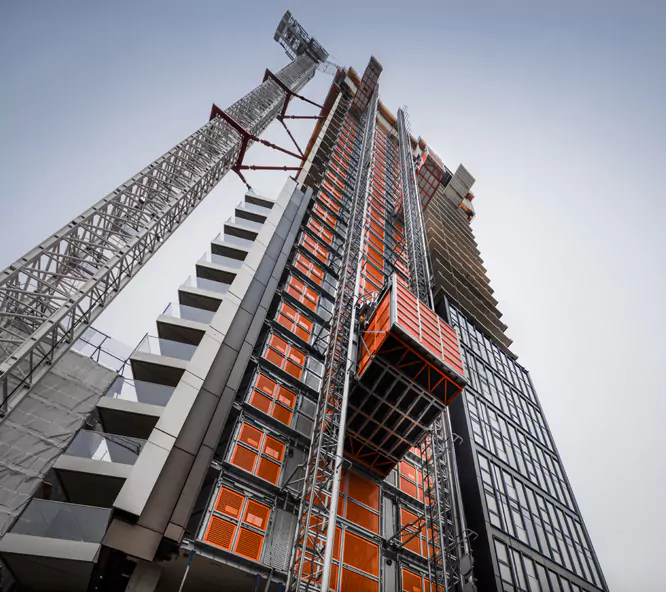

A construction elevator is a type of elevator used in construction projects. It is also known as a scaffolding elevator or a lift. It is mainly used for building and construction purposes such as transport, goods transportation and access to buildings or areas of buildings that are under construction or repair. Construction elevators are mostly used for transporting heavy materials like con - crete blocks, bricks, sandbags and steel bars.

Construction Elevator
