What is HVAC
It is a technology and system designed to manage the indoor climate of buildings by regulating temperature, humidity, and air qual- ity. Specifically, HVAC systems:
Heating: Provide warmth through methods such as furnaces, boilers, or heat pumps.
Ventilation: Facilitate air exchange and airflow to improve air quality and remove contaminants.
Air Conditioning: Cool and dehumidify indoor air to maintain a comfortable temperature

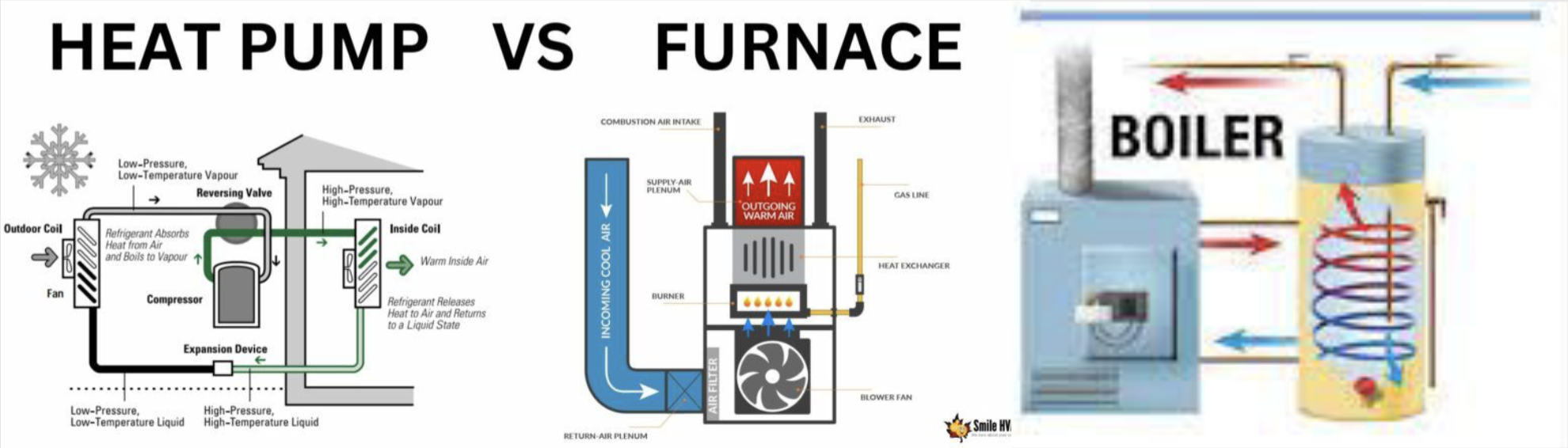

A. Heating Components
Furnaces: Burn fuel (gas, oil, or propane) or use electricity to generate heat. Mechanical parts include the burner, heat exchanger, and blower.
Boilers: Heat water or steam, which is then distributed through pipes to radiators or underfloor systems. Components include the boiler itself, circulator pumps, and expansion tanks.
Heat Pumps: Transfer heat using refrigerant. Key mechanical parts are the compressor, evaporator, and condenser coils

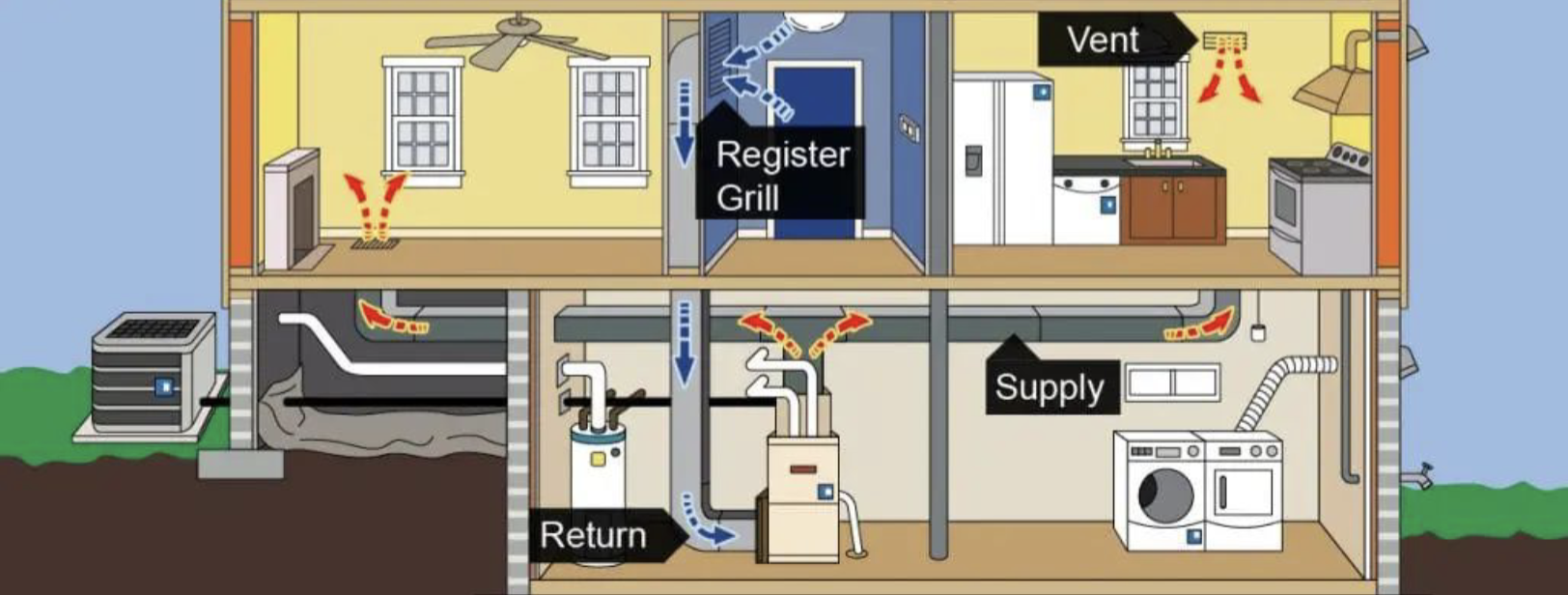

B. Ventilation Components

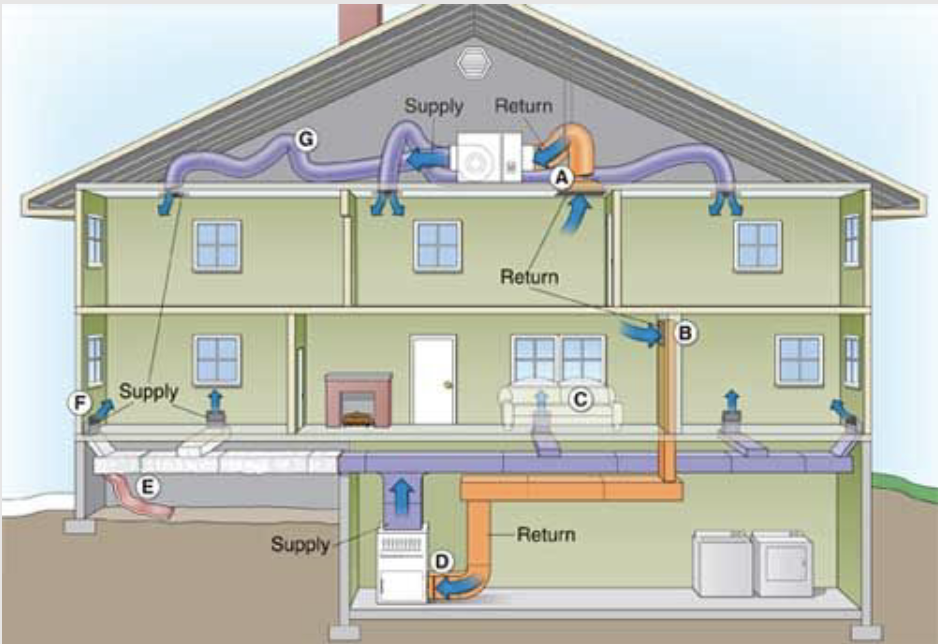

Ductwork: Ductwork is an essential part of a buildings HVAC system, responsible for distributing air throughout the structure.
Vent: known as registers or grilles, are the visible parts of the HVAC system. They are usually installed on walls, ceilings, or floors and allow air to enter or exit a room.
Air Filter: These filters are responsible for removing dust, allergens, and other particles from the air before it is circulated back into the building

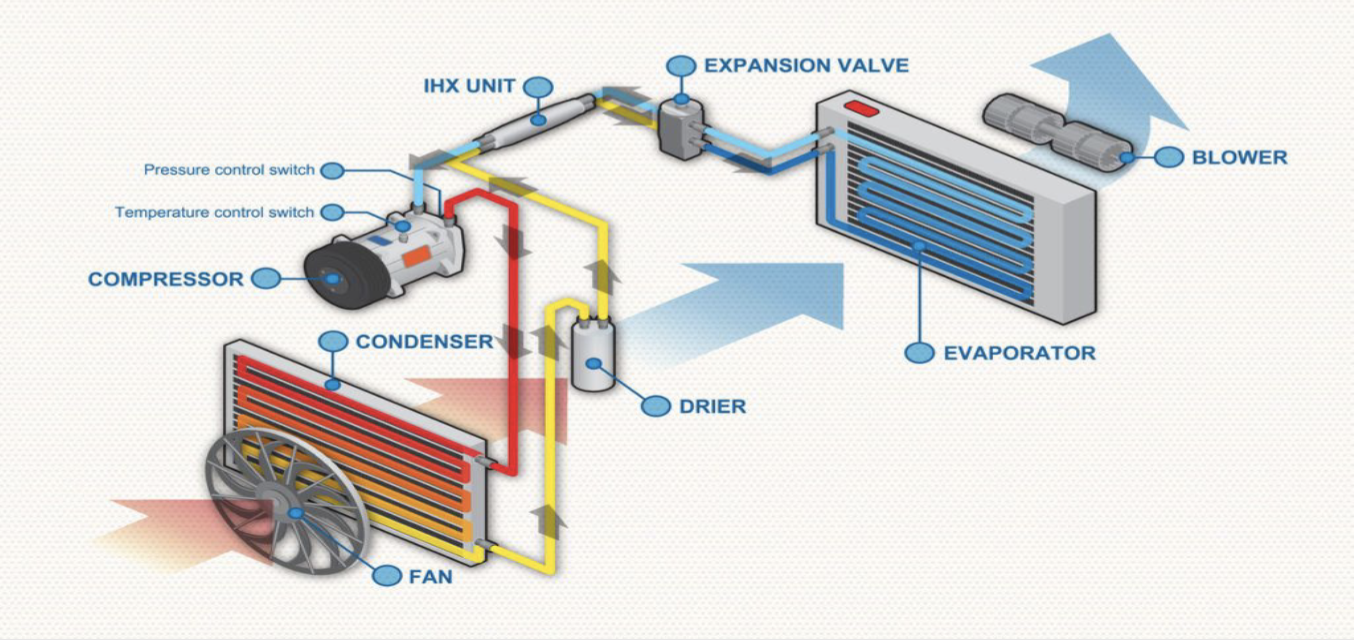

C. Air Conditioning Components
Compressor: The main function is to circulate refrigerant throughout the system. By compressing the refrigerant gas, the compres- sor increases its temperature and pressure, preparing it for the next stage of the cooling process.
Condenser: Condensers are responsible for releasing heat from the refrigerant.
Evaporator: Evaporators play a vital role in the cooling process by absorbing heat from the indoor air. This component consists of a coil that is typically located in the indoor unit of the HVAC system.

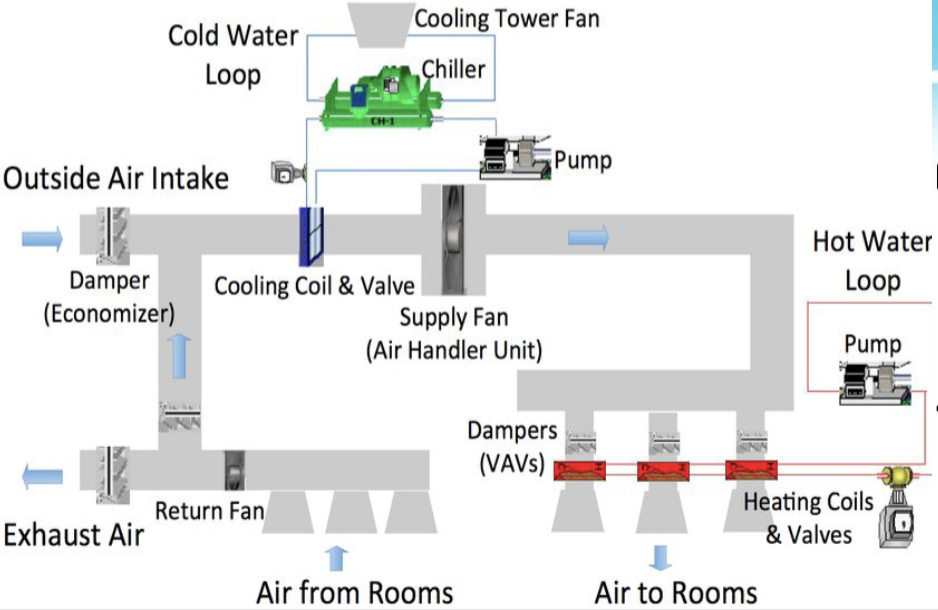

System of HVAC (Mechanical& Electrical)
There are two main types of heating and cooling systems in homes – mechanical and electrical.
Mechanical systems use heat pumps to transfer energy from an external source, such as the ground or utility company, into the home through ductwork.
Electrical heating and cooling systems use either a furnace or air conditioner to directly convert thermal energy into electric cur- rent
Types of HVAC

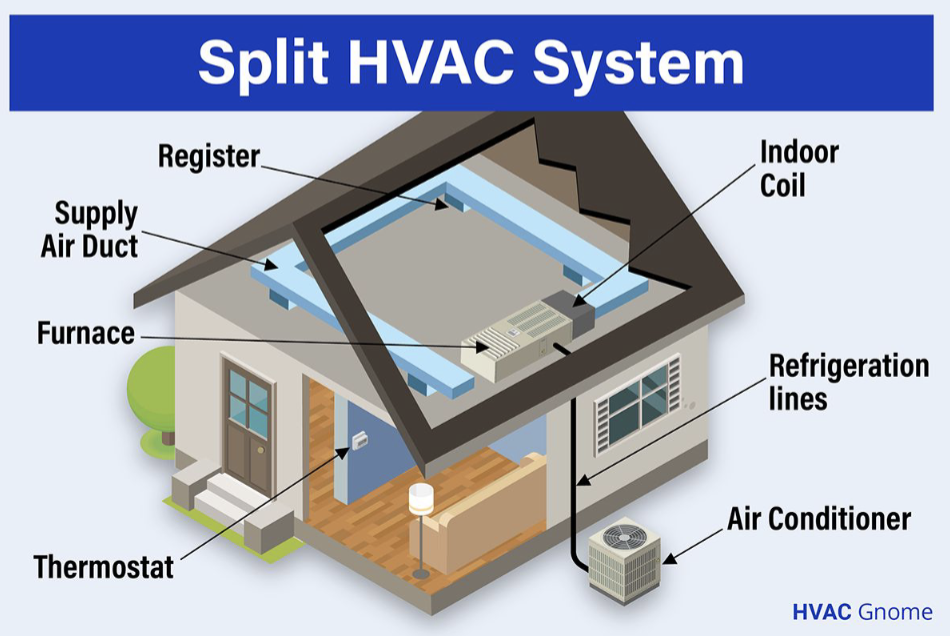

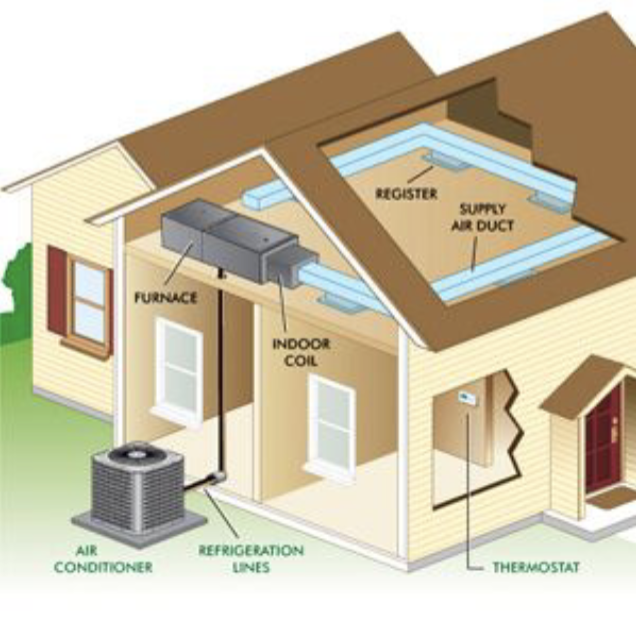

Split System
Split systems are common HVAC systems in residential buildings, consisting of two components for heating and cooling. The heat- ing unit is typically located in an indoor space, while the cooling system is outside and uses compressors, coils, and refrigerant to create cool air.
Key Feature: The temperature of the entire unit is managed by a single thermostat.
Split Air Conditioners: Consist of an indoor unit and an outdoor condenser unit. Common in residential settings.
Split Heat Pumps: Can provide both heating and cooling by transferring heat between indoors and outdoors

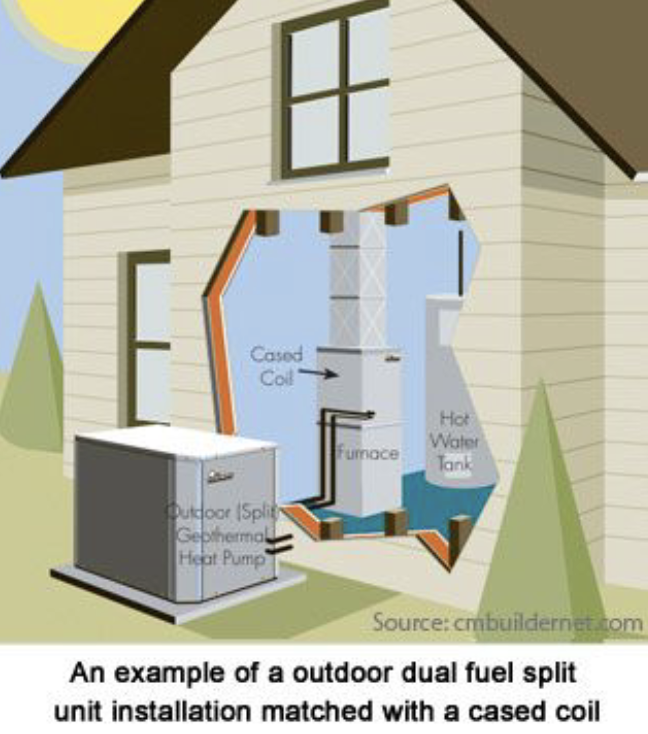

Hybrid Split System
A hybrid split HVAC system uses gas and electric power to create heat, providing building owners with more control over energy consumption and potentially reducing costs in milder climates. Key Feature: Reduces energy consumption

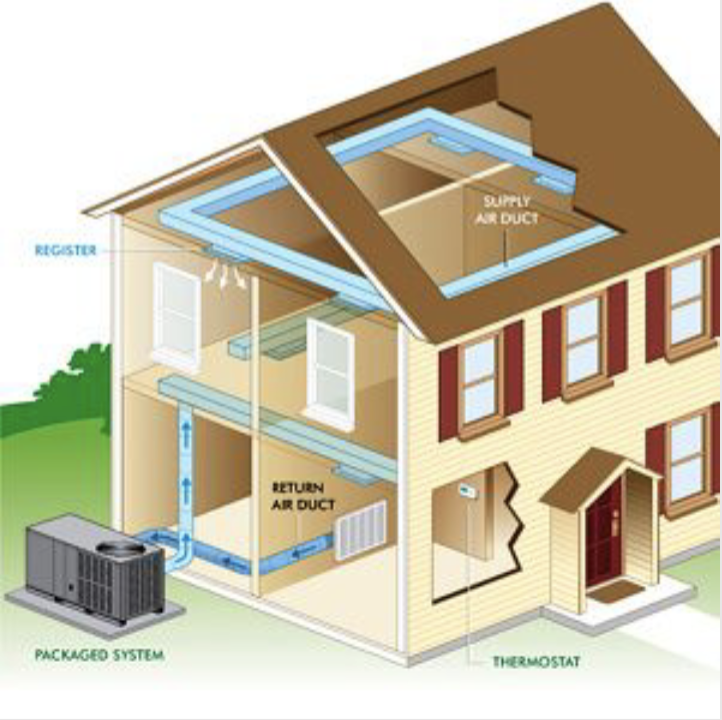

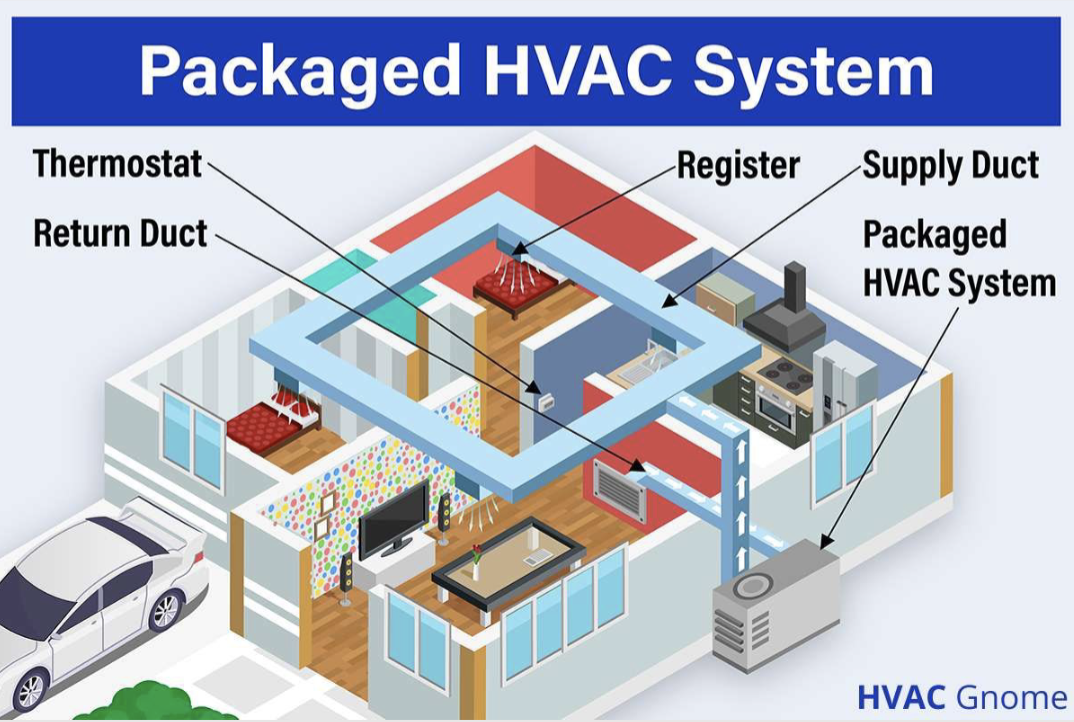

Packaged Heating and Cooling
Packaged heating and cooling systems are smaller, less common, and better suited for small buildings with limited storage space. They are housed in a single unit and connect to ducts through a single hole. They are cost-effective, easier to maintain, and can be installed with evaporator coils.
Key Feature: A single unit is easy to maintain.

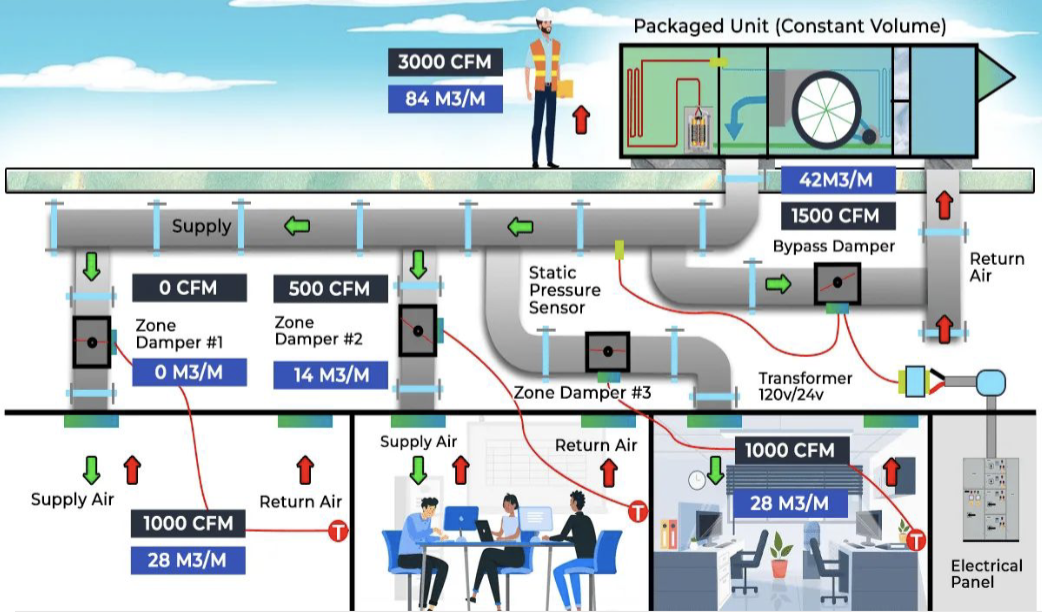

Zoned System
HVAC zoning systems provide building occupants more control over the temperature in different rooms or sections. The ideal ap- proach varies with the size of the structure. In order to regulate the temperature on different floors, larger residences may install numerous systems. Dampers, which regulate airflow and increase energy efficiency, can be operated manually or automatically. Key Feature: More personalized temperature control options.

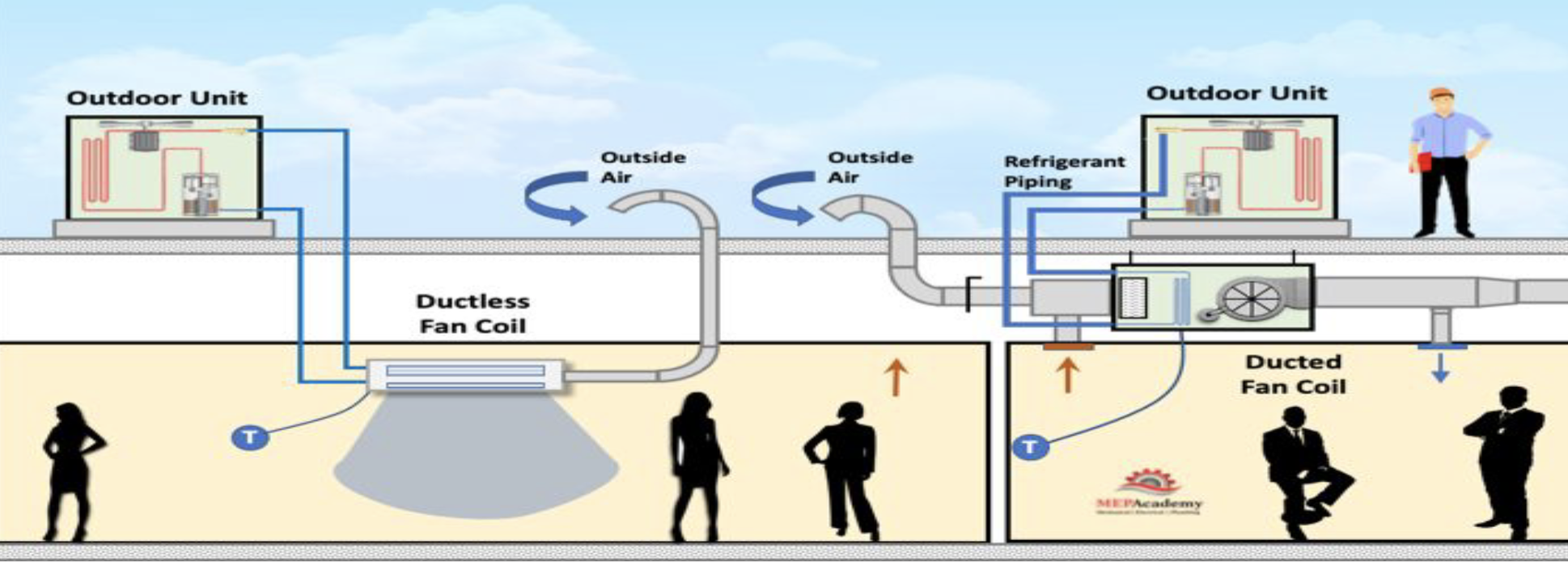

Duct-Free Mini-Split
Ductless mini-split systems are electric units used in multifamily homes, office buildings, and hotels. They consist of an outdoor compressor, condenser, refrigerant, indoor air-handling unit, heat pump, power cables, and thermostat. Although expensive, they reduce energy costs and consumption over time. However, they’re less effective in colder climates. Key Feature: Provides ductless temperature control for individual spaces

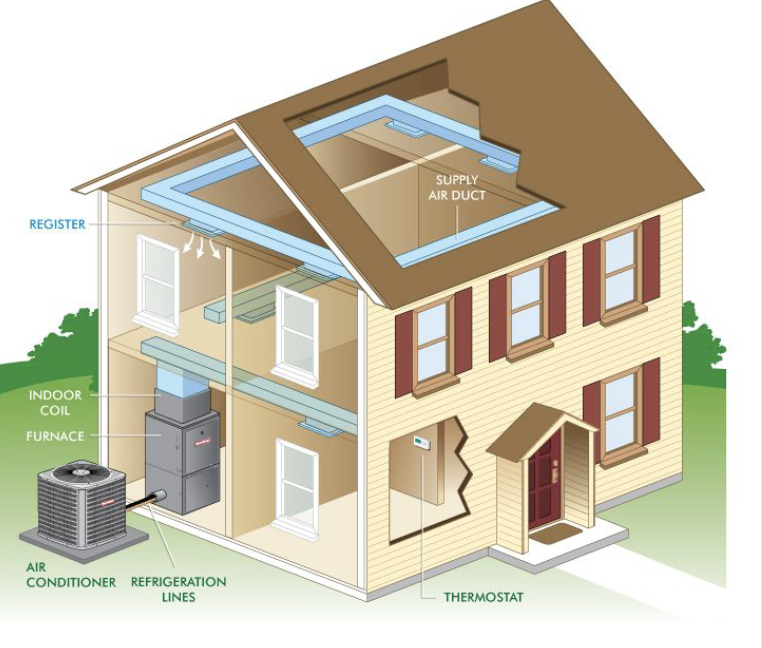

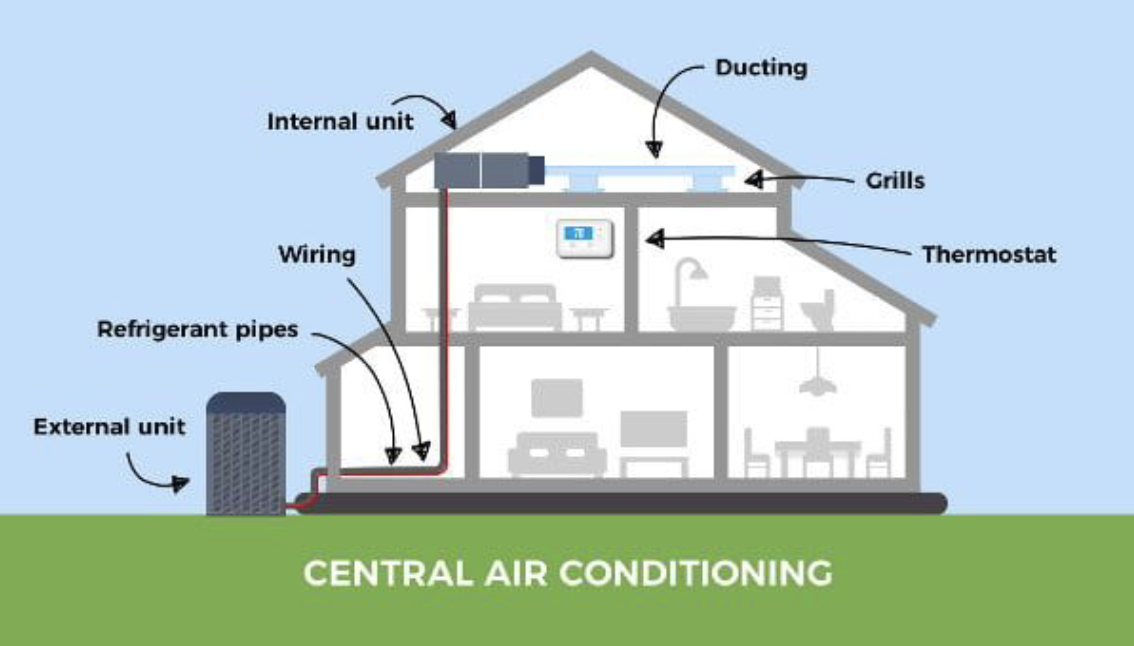

Central Air Conditioning
Central air conditioning systems use ducting and grills to disperse air around a property. This is heated and cooled by one internal central unit. This central unit is often in the basement or loft, and uses a fan system to blow air through a ducting network and into your rooms.

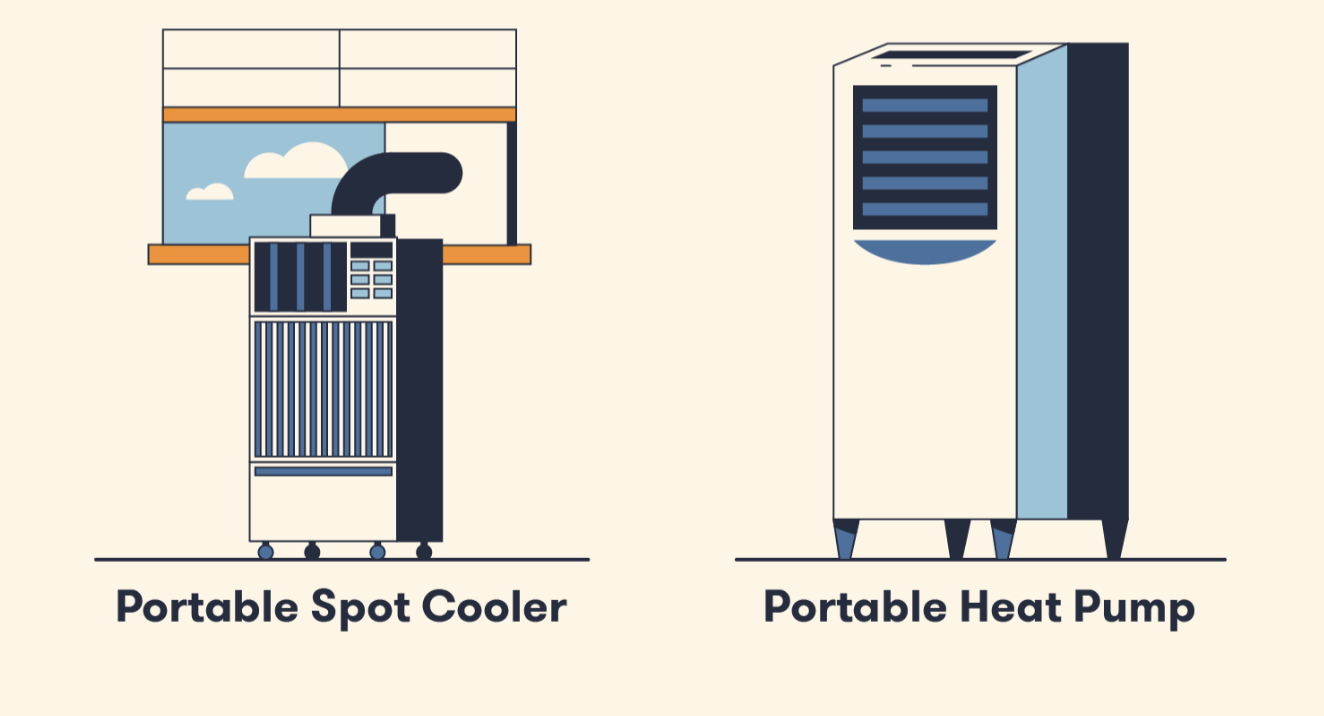

Portable Units
Portable spot coolers and heat pumps are portable AC units that cool large spaces by drawing in ambient air, pushing it over a refrigerated coil, and pumping it back into the space, allowing for varying climates. Key Feature: Easy to transport and simple to fit for usage

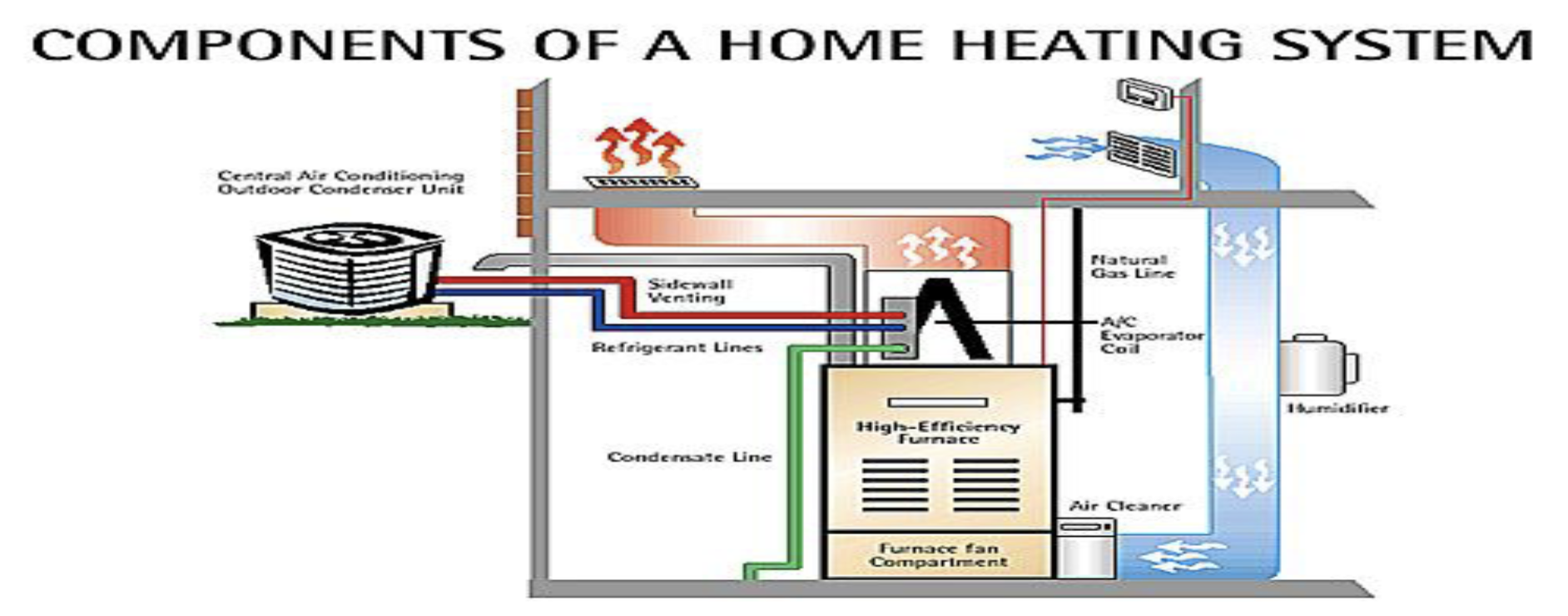

Furnace System
Gas Furnaces: Use natural gas or propane to generate heat.
Electric Furnaces: Use electric heating elements to produce heat.
Boiler System
Hot Water Boilers: Use water heated by the boiler to provide heat via radiators or underfloor heating.
Steam Boilers: Produce steam to heat the building through radiators.

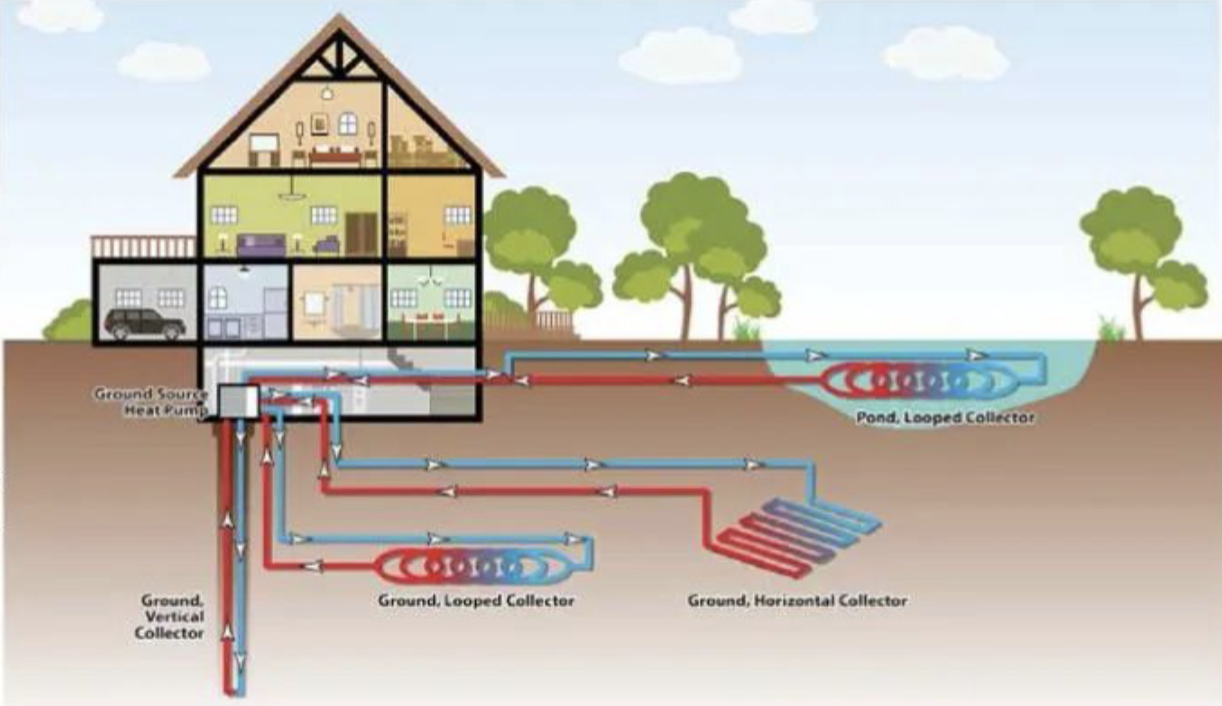

Geothermal Systems
Geothermal Systems use the earth’s constant underground temperature to heat and cool a building. Highly efficient but have a higher initial installation cost.

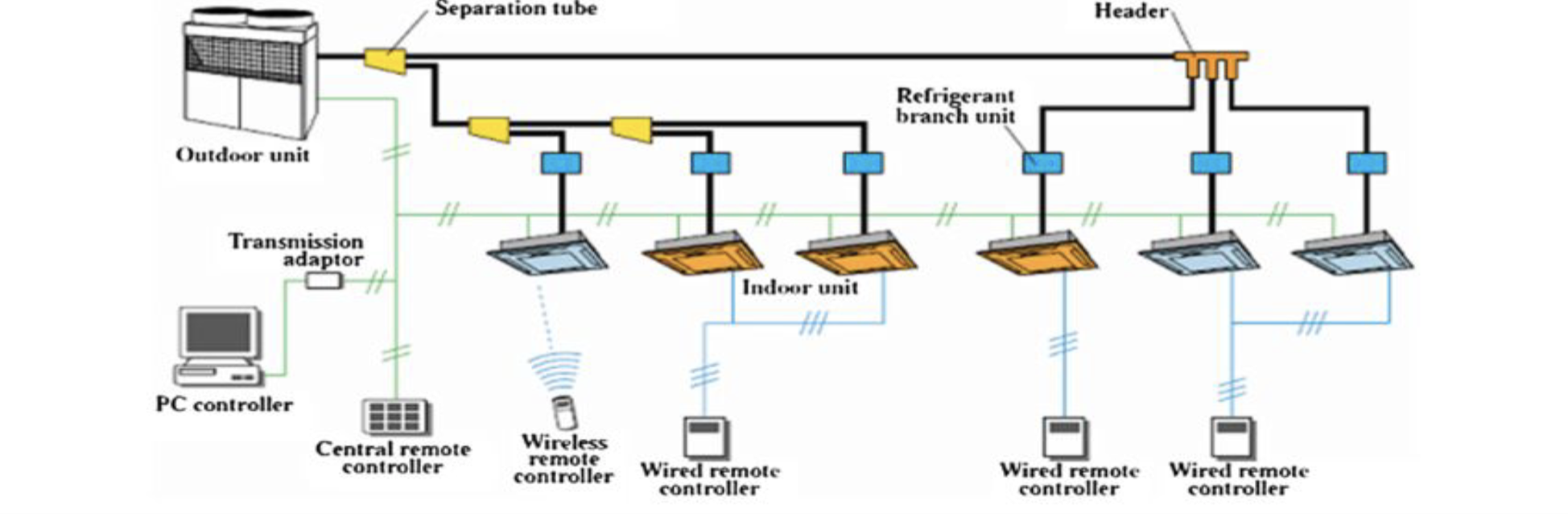

VRF/VRV Systems
The VRV system uses a collective of indoor units across several air conditioning zones, and regulates the refrigerant supply that passes through these units according to the requirements of the space.
Variable Refrigerant Flow (VRF) / Variable Refrigerant Volume (VRV): Advanced systems that use a refrigerant as the heating and cooling medium. Can control the temperature of multiple zones independently

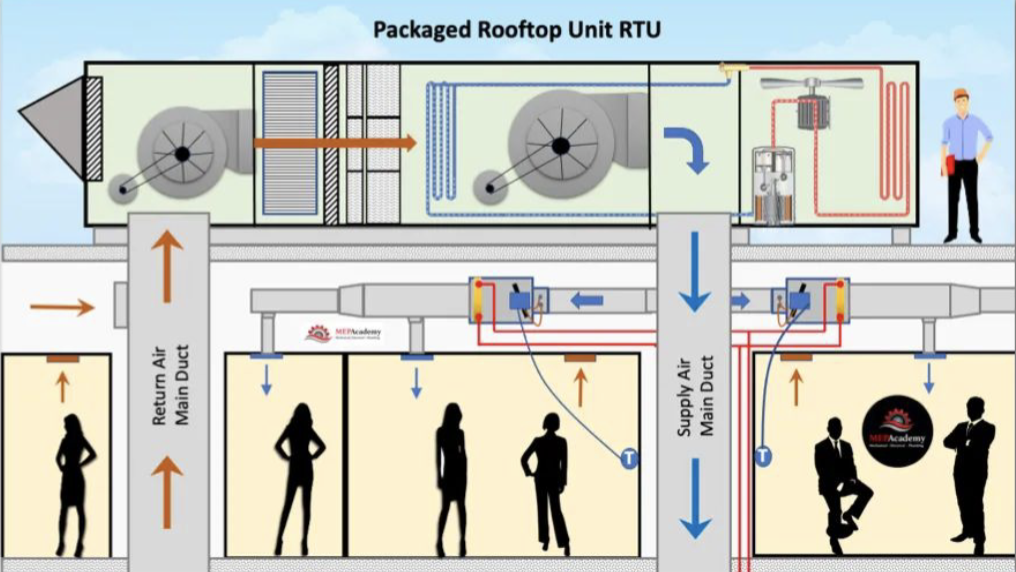

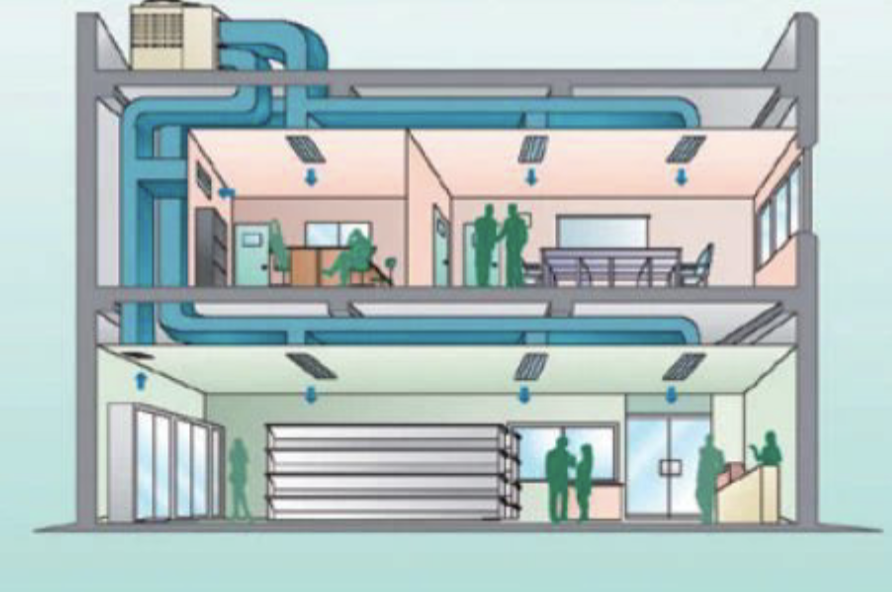

Roof-Top Units (RTUs)
Rooftop air conditioning package unit is a self-contained air conditioning unit that combines cooling, heating, ventilation, humidifi- cation, fresh air and air purification. It is usually installed on the roof of a building and integrates indoor and outdoor components in a single box to save space and improve energy efficiency.
RTUs: Often used in commercial settings, these units are installed on the roof and include heating, cooling, and ventilation in one package.
